Electronic Lock Seal – Description
Plannettech’s PLNT001 GPS Electronic Lock seal is an intelligent e-lock embedded with GPS tracker, portable, reusable, robust physical lock with built-in sensors to provide real time monitoring of secured cargo both in transit and in stationary.
Information about the location, condition, temperature of containers is presented in real time, for all the users or interested parties to monitor and manage conveniently.
The locking function brings maximum control of the cargo, the E-locks can only be unlocked by authorized person or in specific Geofence area, ensures goods supervision and fast dispatch;
Event alert will be triggered to notify the users in real time at any unexpected occassions or deviation from predefined setting, allow them to take swift action before the cargo get damaged or loss.(eg. Lock cable cut alert, abnormal temperature alert, etc.)
Historical data with report can be traced at any time for incidence analysis and management optimization.

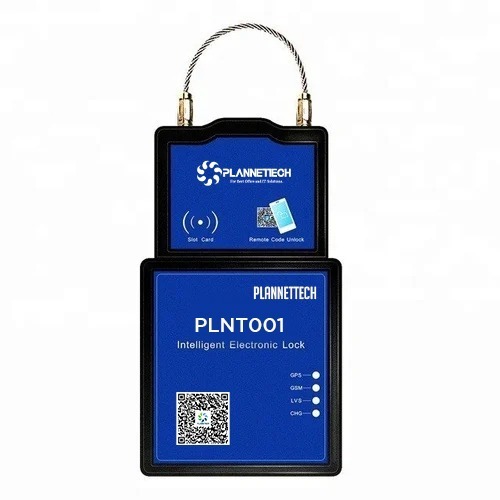

Electronic GPS lock Seal
Electronic seal to monitor container, trailer, van truck
PLNT001 is designed for container tracking & control remotely, it is a good solution for container management.
PLNT001 isĀ not only a GPS tracker to trace container remotely (location, speed, etc), but also an intelligentĀ electronic lock seal to control container door (close/open) remotely.Ā it know the container door is open by Who, Where and When.
It enables the operators to keep tracking their containers when there is no constant powerĀ source continually, It gives also full control to Custom Officials as it moves along the supply chain route from source to the destination.
Operators can track their containers and receive alarms on our various kinds software platform.
Main features
1. PLNT001 is very robust, and it is with IP67, perfect feature for dustproof and waterproof.
2. PLNT001 is easy and simple to install onto the container. Also it is a reusable security seal.
3. PLNT001 is with 15000mAh battery inside, which can ensure it work 7-30 days with one time battery charge.
4. PLNT001 can lock container door to protect the loading goods and can be unlocked by RFID card and SMS and APP remotely.
- Ā© Standalone lock with Live GPS tracking;
- Ā© Adjustable metal string with flexible lock method;
- Ā© Remote unlock by mobile APP, SMS, Software;
- Ā© Onsite unlock by authorized RFID;
Ā© Door locking status monitoring; - Ā© Real time tampering alert;
- Ā© IP67 waterproof grade;
- Ā© Easy to install with magnet;
- Ā© Rechargeable big battery 15+ days life at 1-minute report;
- Ā© Support wireless temperature sensor for reefer
Benefit of this reusable security seal:
- A Increase Cargo Traceability;
- A Improve Customs Clearance Efficiency
- A Loss prevention with live tamper alarms
- A Authorized unlocking for customs supervision
- A Electronic reporting for management
- this is a reusable security seal
Applications
ā¢Customs cargo management
ā¢Express cargo monitoring
ā¢Logistic cargo transportation
ā¢Other asset monitoring & management
Main Specifications: – reusable security seal

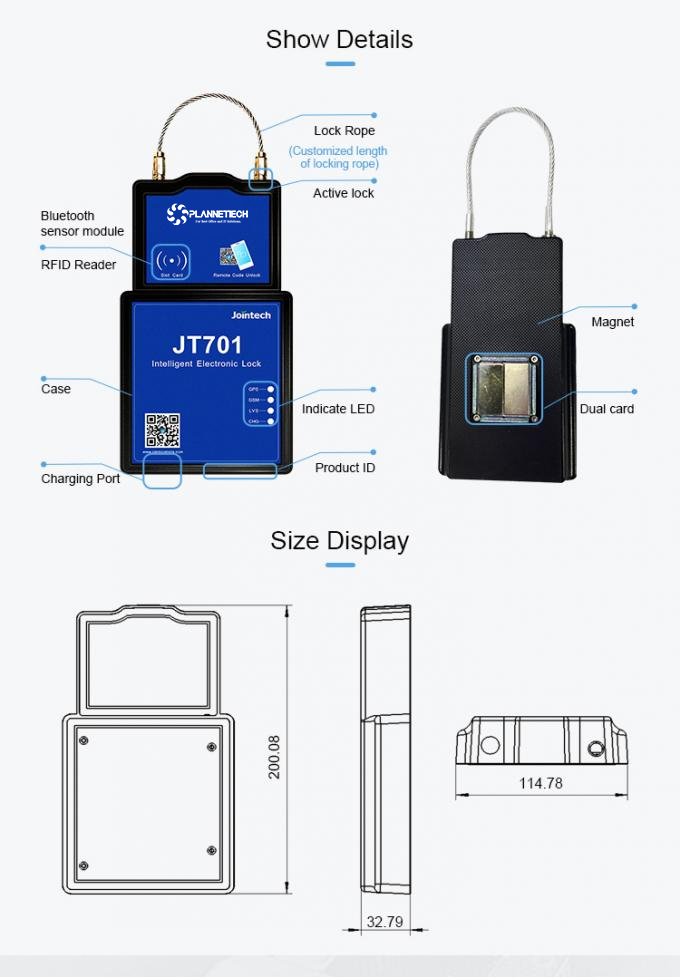

Physical Dimensions 195mm x 114mm x 37mm
Specification Weight 1.2kg (with standard accesorries)
Material Shell Hardened plastic black plated
Lock cable 304 stainless steel
Environmental Operational Temperature -20Ā°C — +60Ā°C
Condition Storage temperature -40Ā°C — +80Ā°C
Operational Humidity 5 ~ 99%
Low temperature battery available
Cellular GSM/GPRS default Quad band (850, 900, 1800, 1900)
Communication 4G LTE band: B1/B2/B3/B4/B5/B7/B8/B12/B13
/B18/B19/B20/B25/B26/B28/B34
/B38/B39/B40/B41/B66
UMTS/HSPA+: B1/2/B4/B5/B6/B8/B19
Data Channels SMS&TCP/IP
Location Type GPS
TTFF 2 sec (hot start)
Velocity: 02m/s (50%)
Antenna type Built-in (concealed)
CPU Static RAM 48KB
Flash Memory 256KB
Battery Type&capacity LI-ION 15000mAh, rechargeble)
Supply Power input DC 5V 2A
Power consumption Sleep/Idle <0.1mAh
GPS & GPRS <90mAh
RFID Radio Frequency 125K
Sensor Motion detection 3 axis accelerometer
[Access Port Type USB / serial port
Memory Data logs 24,000 logs
1). Ā Load the goods, Authorize the ID cards, Swipe the card and lock the door with PLNT001
2). Ā On the road: PLNT001 will upload the position to the server, you can monitor it in computer or mobile in real time
3). Desitination: Swipe the card to unlock PLNT001 (or unlock with password via SMS, unlock with command via software)
4). Reports: Who, When, Where unlocked, trace, can be checked at any time
5). Alarms: Low battery alarm, Sting cut alarm, card swiping, unlocking, wrong password SMS, vibration, geofence
