One Button Super Wi-Fi Range Extension
The TL-WA860RE wall-mounted is designed to conveniently extend the coverage and improve the signal strength of your wireless network. With 300Mbps wireless N speeds, TL-WA860RE turns your ‘dead zones’ into connected zones, helping you keep mobile devices, media players, and computers connected to Wi-Fi with a reliable connection.

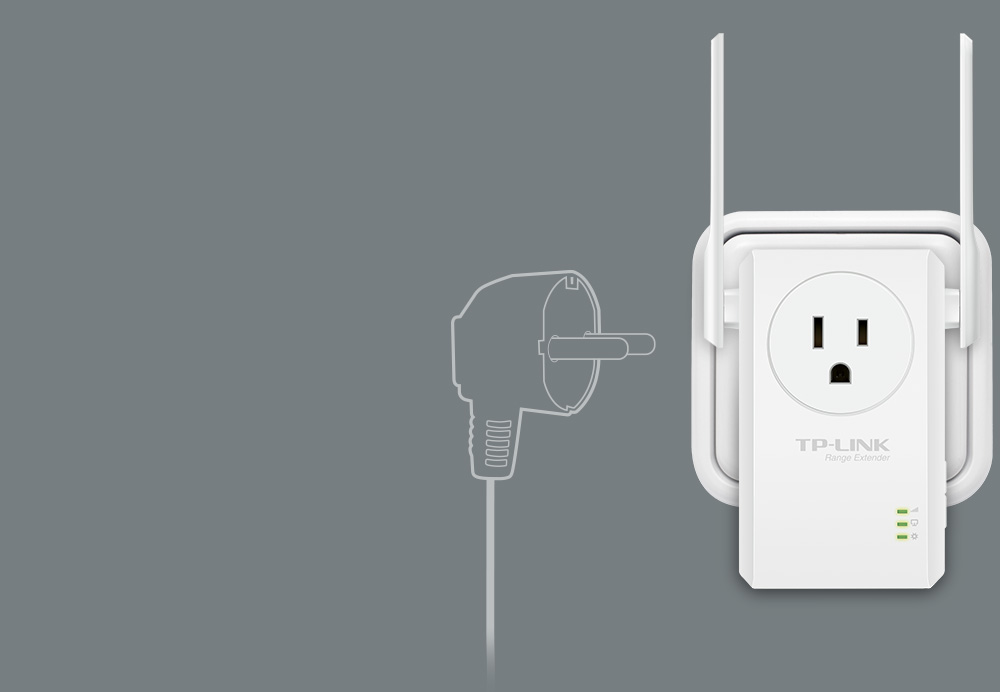

Flexible Placement & Extra Power Socket
The TL-WA860RE’s miniature size and wall-mounted design make it easy to deploy and move flexibly. Once connected with an existing router, you can simply unplug and plug the Range Extender back in anywhere without the need to configure it again. Moreover, its integrated power socket ensures that no power outlet goes to waste.
Plug and Play
Just plug and play. That’s all you need to do to extend your wireless network. With no new wires or cables, within range of their existing wireless network, users can easily extend wireless coverage at a push of the WPS button on their router followed by the Range Extender button on the TL-WA860RE.
Superior Range with External Antennas
With 2 external antennas combined with higher quality antenna technology, you can experience excellent WiFi coverage and reliability no matter where you connect in your home.

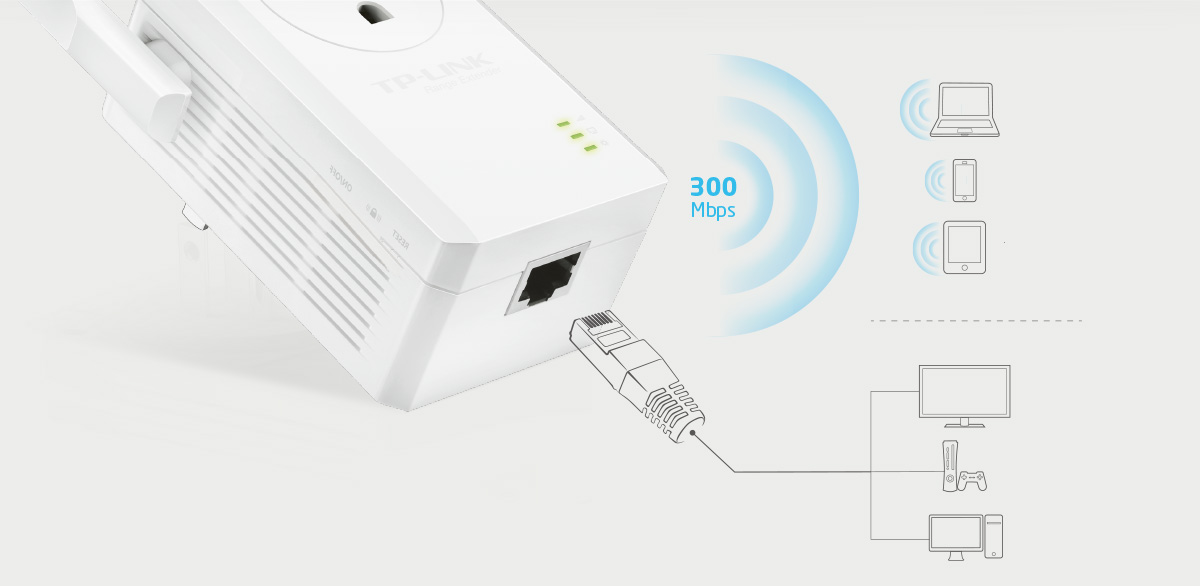

Ethernet Bridge: Turn wired devices into a wireless one
The TL-WA860RE’s single Ethernet port allows the Extender to function as a wireless adapter to connect wired devices like Blu-ray® players, gaming consoles, DVRs, and Internet TVs. At the same time, the device can also share the wireless network.
Smooth Streaming
The TL-WA860RE provides fast connectivity for lag-free HD/3D video streaming, online gaming, and internet calling with 300Mbps wireless N speeds.
Smart Signal Indicator
Smart signal lights show the strength of the signal that TL-WA860RE receives from the existing router, which can help to find the best location for optimal WiFi coverage
SPECIFICATIONS
| HARDWARE FEATURES | |
|---|---|
| Plug Type | EU, UK, US |
| Standards and Protocols | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Interface | 1 * 10/100Mbps Ethernet Port (RJ45) |
| Button | RE (Range Extender) Button, Reset Button |
| Power Consumption | About 3W |
| Dimensions ( W x D x H ) | 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm) |
| Antenna | 2 * external |
| WIRELESS FEATURES | |
|---|---|
| Frequency | 2.4~2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps (dynamic) 11g: Up to 54Mbps (dynamic) 11b: Up to 11Mbps (dynamic) |
| Reception Sensitivity | 270M: -69dBm@10% PER 130M: -69dBm@10% PER 108M: -69dBm@10% PER 54M: -69dBm@10% PER 11M: -86Bm@8% PER 6M: -89dBm@10% PER 1M: -91dBm@8% PER |
| Transmit Power | < 20 dBm (EIRP) |
| Wireless Modes | Range Extender |
| Wireless Functions | WMM (Wi-Fi Multimedia) Wireless MAC Address Filtering Wireless Statistic Domain Login Function |
| Wireless Security | 64/128/152-bit WEP WPA-PSK / WPA2-PSK |
